The extra DX MAX functions

When switching the unit on, it says:

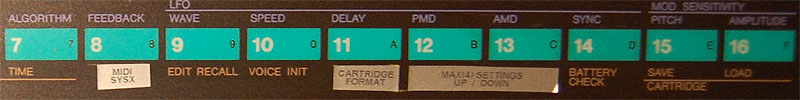

The buttons for accessing the MAX(4) settings are:

[12] - PREVIOUS OPTION
[13] - NEXT OPTION

Option	Values	Description
LIMIT KEY L	C-2 .. G8	Low key limit
LIMIT KEY H	C-2 .. G8	High key limit
POLY MODE	161 82 4*4	- 16 note X 1 voice normal polyphonic mode. Stack mode (see below): - 8 note X 2 voice (+ voice A). - 4 note X 4 voice (+ voices A, B and C).
DETUNE A	[-24..24] . [00..99]	Stack mode coarse and fine tuning COARSE . FINE
DETUNE B	[-24..24] . [00..99]
DETUNE C	[-24..24] . [00..99]
MEMORY BANK	1 .. 8	MAX (4) gives 7 extra banks
VOLUME	1 .. 7	Master Volume
LOCAL CONT	ON/OFF	local control of the keyboard
INIT FUNCTION
MIDI OUT	1 .. 16	MIDI channel out

What is stack mode?

(some parts from another brochure)
By utilizing MAX(4)'s Stacking facilities 2 extra variations of a sound can be tuned and stacked on top of the original sound to make more authentic organ, 12-string guitar, chimes and many other unique effects easy to achieve.

POLY MODE

*161**	16 note X 1 voice:	normal polyphonic mode, the extra voices A, B and C are off
*82**	8 note X 2 voice:	the sound of the extra voice A is on
*44**	4 note X 4 voice:	the sound of the extra voices A, B and C are on

STACK MODE COARSE TUNING

Number before the dot: set the coarse tuning of voice A, B or C (-24 to +24 semitones)

STACK MODE FINE TUNING

Number after the dot: set the fine tuning of voice A, B or C (0 to 99 of a semitone)

From yamahaforums:
"If your DX7 has SuperMax extension you should consider yourself lucky. In fact there are two extensions DX-MAX and SuperMAX. First one will give you more voice memory and voice stacking, the second one will give much more."
http://www.yamahaforums.co.uk/forum/viewtopic.php?f=35&t=1124
