Setting the MIDI-channel
- hold the MODE button while switching the POWER on (Indicator SET should start to blink)
- send a midi message from a channel that you have assigned (for example choose channel 2 on your device and press any key on your keyboard).
- Channel is set, SET indicator will stop blinking. It will be saved in the memory of MAD-5.
MIDI Keyboard keys
The keys are one octave higher than the standard Roland Drum Notes.
| C2 | D2 | E2 | F2 | G2 | A2 | B2 | |||||
| 48 | 49 | 50 | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 |
| Bass Drum |
Snare Drum |
Clap | (Snare Drum) |
OH | (OH) | CH | (CH) |
Settings for StepPolyArp
| +0 | ||
| +0 | ||
| +0 | ||
| +0 | ||
| +0 | ||
| +0 | ||
| 53 | F2 | Open Hihat |
| 57 | A2 | Closed Hihat |
| 51 | D#2 | Clap |
| 50 | D2 | Snare Drum |
| 48 | C2 | Bass Drum |

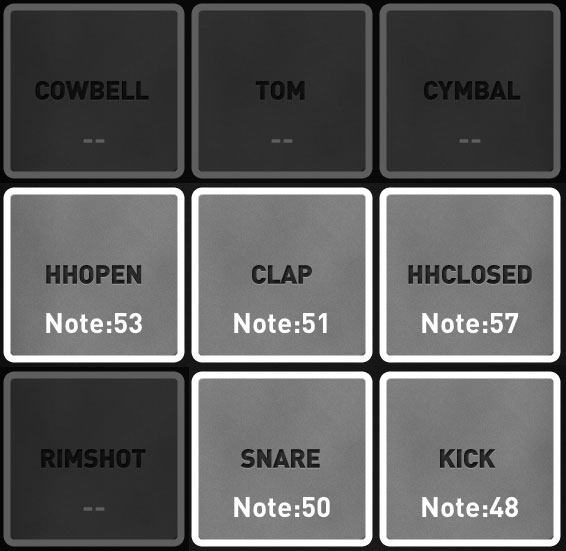

Settings for iPad "Fingerlab DM1" app:
