signal flow

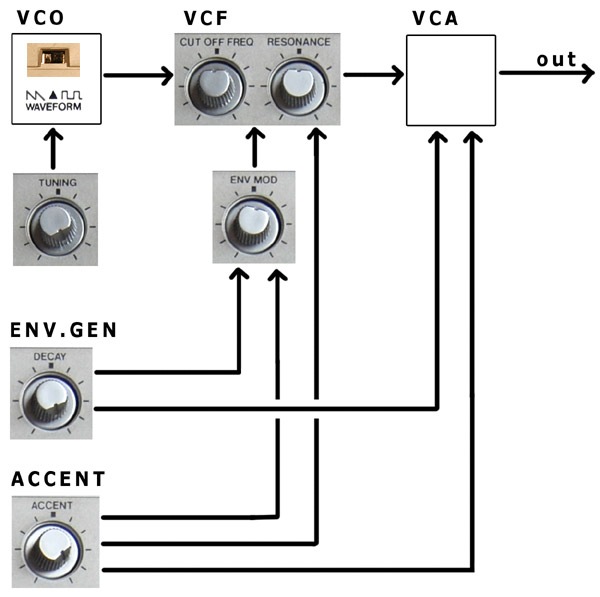

Here's the schematic of the TB-303 signal flow. The sound travels from left to right, the modulation from bottom to top.
The buttons are rearranged in such a way, that the layout matches the concepts of the signal flow on the face of the ARP2600.
Which makes it much more comprehensable.
- side note: the decay button has no effect on accented notes.

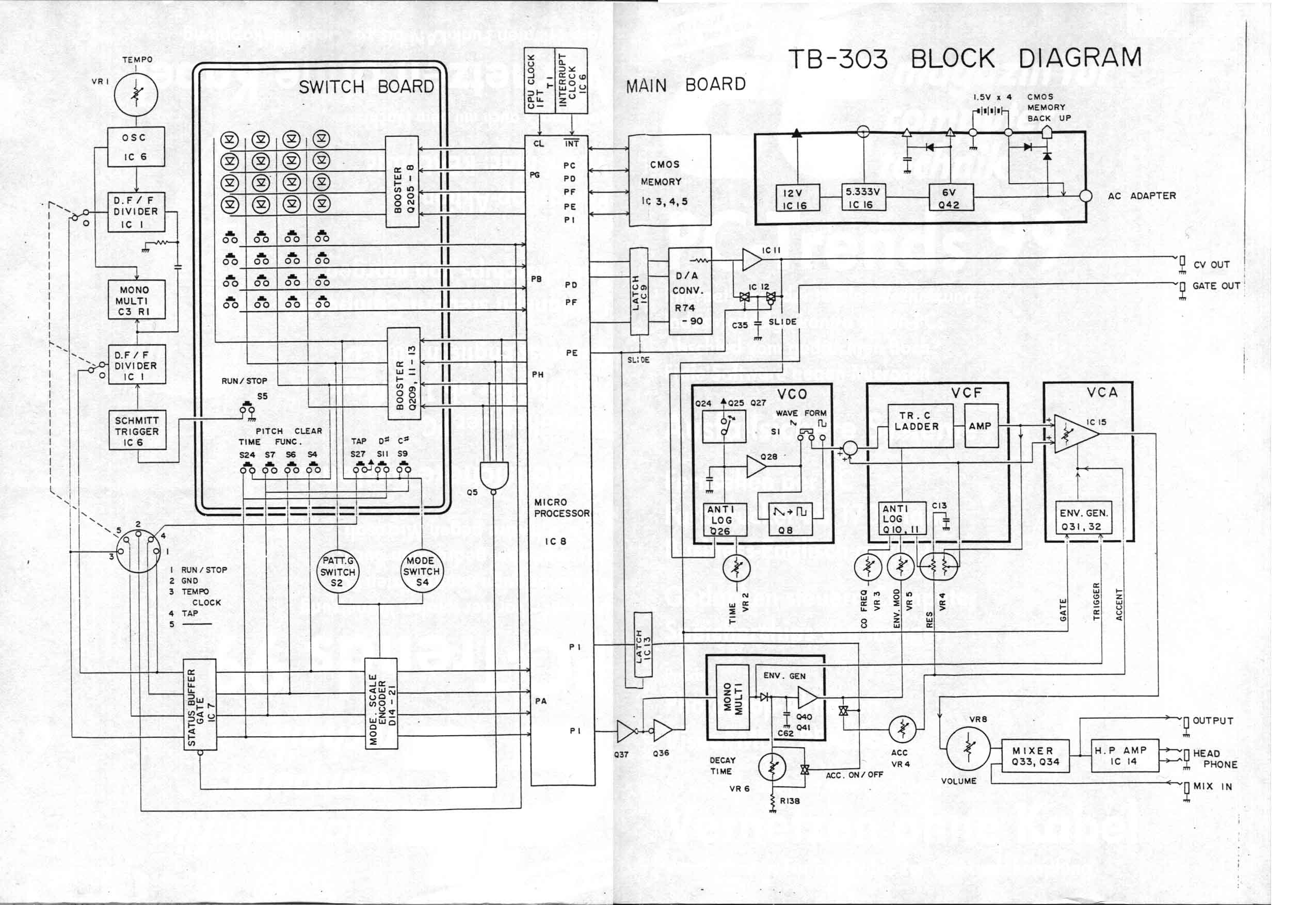

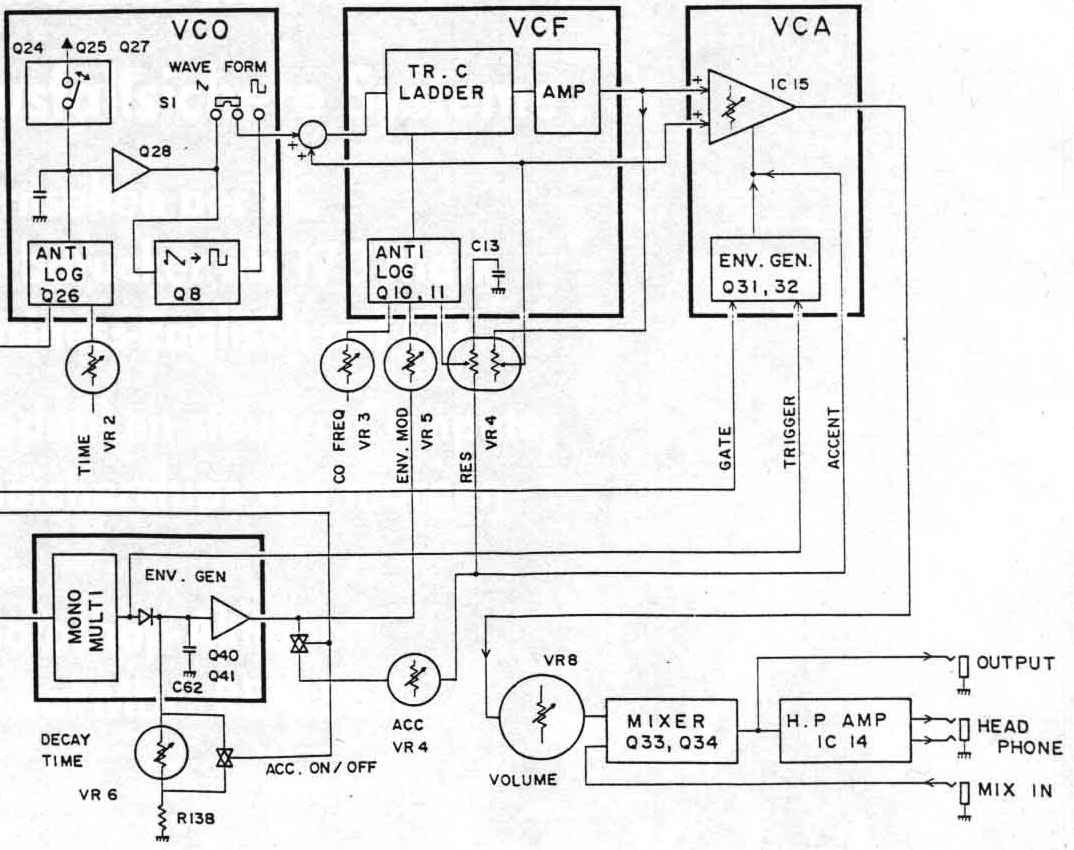

compare the flow in the service manual on page 4
