Control Change numbers for the TR-09
White: CC only
Yellow: CC and dedicated knob on TR-09 panel
| CC only | Compression | - | Compr 22 |
Compr 27 |
- | - | - | - | - | - | - | - | - |
| Tune | - | - | - | - | - | - | Tune 55 |
Tune 58 |
Tune 61 |
Tune 80 |
- | - | |
| Decay | - | - | - | - | - | - | Decay 56 |
Decay 59 |
- | - | Decay 84 |
Decay 87 |
|

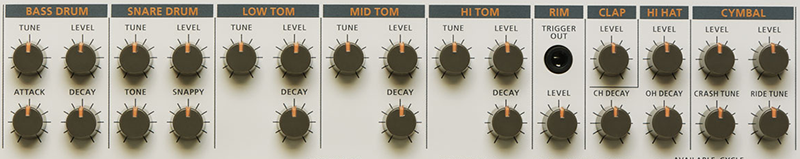

| TR-09 Panel Layout |
Tune | - | Tune 20 |
Tune 25 |
Tune 46 |
Tune 49 |
Tune 52 |
- | - | - | - | Tune 83 |
Tune 86 |
| Level | Level 71 |
Level 24 |
Level 29 |
Level 48 |
Level 51 |
Level 54 |
Level 57 |
Level 60 |
Level 63 |
Level 82 |
Level 85 |
Level 88 |
|
| Attack/ Tone | - | Attack 21 |
Tone 28 |
- | - | - | - | - | - | - | - | - | |
| Decay/ Snappy | - | Decay 23 |
Snappy 26 |
Decay 47 |
Decay 50 |
Decay 53 |
- | - | Decay 62 |
Decay 81 |
- | - | |
| TOTAL ACCENT |
BASS DRUM |
SNARE DRUM |
LOW TOM |
MID TOM |
HI TOM | RIM | CLAP | CLOSED HIHAT |
OPEN HIHAT |
CRASH | RIDE |
Or, if you like this better :)
| Level | 71 | 24 | 29 | 48 | 51 | 54 | 57 | 60 | 63 | 82 | 85 | 88 |
| Compression | 22 | 27 | ||||||||||
| Attack | 21 | |||||||||||
| Decay | 23 | 47 | 50 | 53 | 56 | 59 | 62 | 81 | 84 | 87 | ||
| Tone | 28 | |||||||||||
| Tune | 20 | 25 | 46 | 49 | 52 | 55 | 58 | 61 | 80 | 83 | 86 | |
| Snappy | 26 | |||||||||||
| AC | BD | SD | LT | MT | HT | RS | CP | CH | OH | CR | RI |
