- when the root key and assigned key are the same, the orange color dims the highlighted key
vertical line on key or below black key: key already occupied by a sample or sample range

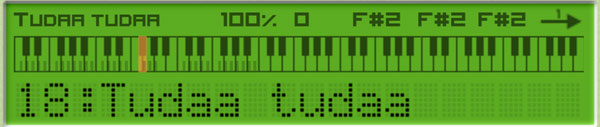

Display
| active sample - volume% - tuning - root key - low key - high key - loop mode |
|
| orange: root key of current sample. - when the root key and assigned key are the same, the orange color dims the highlighted key vertical line on key or below black key: key already occupied by a sample or sample range |
Other example, where you can see the root key of a wave and the highlighted key range.
You can also see the hint of other wave ranges.

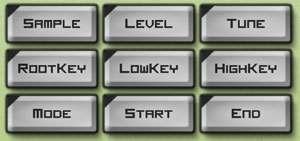

Buttons
| Button | Press | Dial | Long Press | |
| Sample | sample select | dial other sample in mem for editing by options below |
load wave file in current slot or dial empty slot first |
|
| Level | volume | change volume (max 200%) 0% - remove sample |
sample editor sample properties |
|
| Tune / Pan | tuning in cents pan left/mid/right |
tune (-50 / +50) | toggle tune / pan | |
| RootKey | sampled pitch notenr | dial root key nr | press root key on kb | |
| LowKey | show first keyb notenr | dial low key notenr | press low key on kb | |
| HighKey | show last keyb notenr | dial hi key notenr | press high key on kb | |
| Mode | loop mode | - play once - note on/off - loop forward - loop forwardback - intro + loop fwd - intro + loop fwdback |
set playback mode for all samples | |
| Start | sample offset start | offset fwd sample tick | graphical edit + micro set loop point + set loop mode |
|
| End | sample offset end (shows sample length) |
offset bwd sample tick | graphical edit + micro set loop point + set loop mode |

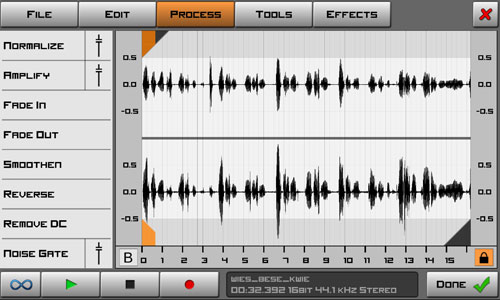

Wave editor
Stereo samples are supported, but single channel editing is not possible
Beats/seconds, snapping, correcting
B / S toggle: show Beats (overlay bpm of the song), Seconds of the wave
Lock toggle: snap editing to Beats or Seconds
Detect bpm of the wave using Tools > Detect BPM
Change bpm of the wave using Tools > Pitch/Time
-
Rubberband: sounds usually better after Apply, can give phasing, good for full drum loops
- Soundtouch: (simpler algorithm) can give clicking, good for solo voices
